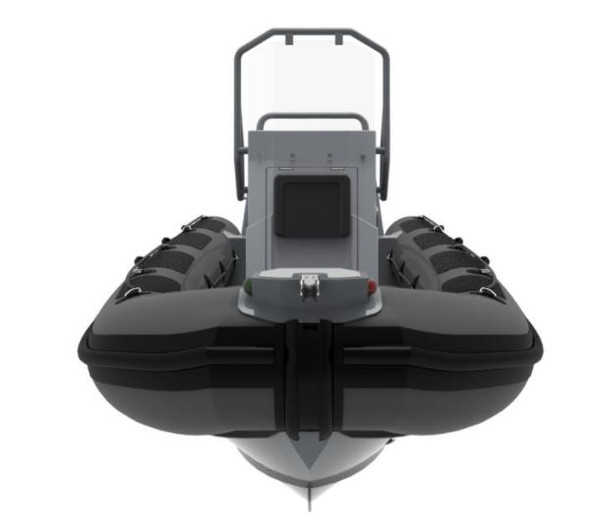

Highfield Patrol 540 (5.4m)
- SKU:
- PA540
Frequently bought together:
Description
Highfield Patrol Range 540 (PVC or Hypalon)
Available with either a bow step or bollard
The Patrol boats carry large loads and plane quickly and easily with little horse-power. The hull is built from 5083 aluminium plates with 6 and 10mm stringers. With their super deep V, wide chines and large diameter tube, they offer high manoeuvrability, high safety and a soft dry ride even in the roughest conditions.
These boats are ideal pursuit craft or work boats and can be configured with different seating and console options. When safety, toughness & reliability really matter, the Patrol range should be your first port of call. With MCA rating & commercial coding available, the Patrol range is perfect for commercial chartering or working offshore too.
The Patrol 540 comes in a range of colours and specification options as shown below.
Note: Library photos may not reflect exact specification of boat.
For more details please email us at sales@rib-shop.com or call us on 01489 556800.
Additional Information
OVERALL LENGTH: |
5.40 m |
INTERNAL LENGTH: |
4.30 m |
OVERALL WIDTH: |
2.48 m |
INTERNAL WIDTH: |
1.33 m |
DEAD RISE: |
24° |
TUBE DIAMETER: |
52 cm |
NUMBER OF AIR CHAMBERS: |
6 |
*MAXIMUM LOAD: |
960 kg |
MAXIMUM PEOPLE: |
12 |
BOAT ONLY WEIGHT: |
488 kg |
MAXIMUM POWER: |
115 hp |
ENGINE SHAFT: |
XL |
FUEL TANK: |
105 l |
DESIGN CATEGORY: |
C |
PACKAGE SIZE FOR BOAT: |
510 x 130 x 105cm |
*Maximum load includes crew & cargo: |
it does not include engine weight, fuel or water. |
Related Products
Related Products

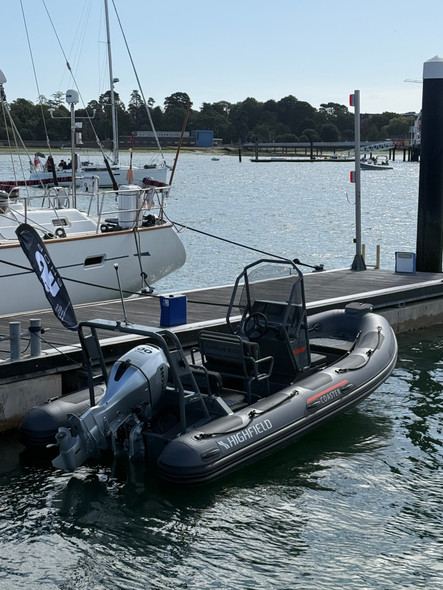

Highfield Patrol 540 (5.4m) Coaster
